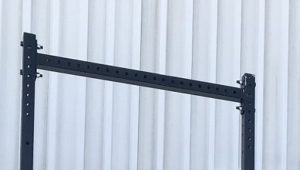

Our BOULDER range of Wall Mount Rigs makes use of 112.5cm horizontal round bar cross-members (standard) OR square 60mm x 60mm cross-member beams (custom) to connect to the wall. Use of our shorter 112.5cm round bar/square beam means that you get a world class wall mount rig while saving a lot of floor space at home or at your gym/sporting facility.
If you want to maximise floor space, see our Fold Away Wall Mount Racks. If you want more pull-up/muscle-up space on your Wall Mount Rig, please see our KOPPIE Wall Mount Rigs, which features our 184.5cm horizontal cross-members. If you want a freestanding Rig please view our Freestanding Rigs.
Our BOULDER range of wall mount rigs come in 3 standard heights and 1 custom height, all at a depth of 118.5 cm off the wall. The four heights are: 2.4m, 2.8m, 3.8m and a custom height of 4.7m (please request a quote for this height).

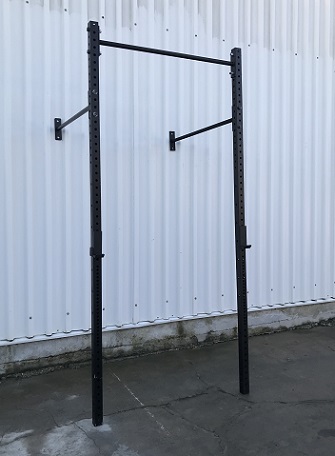

2.4/2.8 m Height (Rack Only – see below for extending the length)
3.8m/4.7m Height (Rack only – see below for extending the length)
The BOULDER range of wall mount rigs can then be purchased in different standard lengths:
A Rack (1/2 unit) – ideal for home training set-ups (1.245m long)
A Unit – ideal for smaller gyms/boxes/facilities or home set-ups (3.17m long)
A Unit plus a Rack – ideal for smaller gyms/boxes/sports facilities (4.36m long)
Or any in combination of Units/Racks – ideal for gyms/boxes/sports facilities and is expandable in alternating Rack 1.245m and Pull-up/Muscle-up Bar 1.845m sections.
Two (2) Units – 6.24m
Two (2) Units plus a Rack – 7.425m
Three (3) Units – 9.33m
Three (3) Units plus a Rack – 10.515m
View our Diagram and Table of lengths and associated parts below…
Our BOULDER Wall Mount Rigs consists of 60mm x 60mm (2.31mm) 11 Gauge Steel vertical uprights (in 2.4m/2.8m/3.8m/4.8m). These uprights have 17 mm holes for attachments and securing! All of our vertical uprights have Westside type hole spacing through the bench/pull area (2.5cm pitch), and 5 cm pitch spacing above and below, with 5 – 15 cm pitch between holes specifically designed for setting up the horizontal bars at your desired heights and for attaching accessories!.
Our 112.5cm horizontal round bar cross-members are 32 mm diam round bar (2.31 gauge) steel. If you would like a square horizontal beam/beams on the 2.4m and 2.8m heights, please request a custom price. The 3.8m and the 4.7m vertical upright heights come standard with a 112.5cm horizontal beam (cross-member) for rope / ring attachments.
All steel is spray painted matt black for a durable, good looking finish. You can also customise your colour for a top up fee!! Please request pricing for your choice of colour!
The length of the BOULDER Wall Mount Rig is only limited by your available wall space at home or in your gym/sports facility. You can continue adding as many squat/bench and pull-up/muscle-up stations as you need. Each system features adjustable pull-up/muscle-up bars, all with the required M16 hardware, J-cups (1 pair per pair vertical uprights), and your choice of 2.4m, 2.8m, 3.8m or 4.8m vertical uprights.

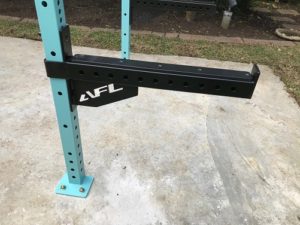

The BOULDER Rig must be bolted to the floor and a wall made of solid material such as concrete, cinder block, wood, metal etc. Like all our Rigs, Wall Mount Rigs and Racks/Squat Stands, the BOULDER Wall Mount Rig is compatible with a wide range of accessories (Safety Spotter Arms, Dips “Buffalo Bars”, Wall Ball Targets etc..)
1. We can also customise your BOULDER or KOPPIE Wall Mount Rig with various vertical upright lengths, depending on your specific needs. Please request a quote if wanting Vertical Uprights of different lengths (i.e. 2.4m vs 2.8m vs 3.8m which allows for Rings/Rope Attachments vs 4.7m which allows for rings & full 15 foot rope climbs)
2. The Unit must be bolted to the ground.
3. All rig length options come with all the appropriate hardware to set-up the rig with all the horizontal beams (cross-members) at various heights.
4. Floor/Wall Mounting anchoring is NOT provided as this will vary according to the type of wall and floor material at your home/facility!
Comes standard in Black for INDOOR USE. If you want the unit to be installed OUTSIDE in the elements, we suggest that you galvanise and paint for outdoor use, especially if you are at the coast! Galvanising and painting for the outdoors is NOT INCLUDED IN THE COST. Please REQUEST A QUOTE for this! Please note that Galvanising gives a “rougher” and less “refined” finish, due to the dunking of the product and coating it! Drainage holes also need to be added to all items when Galvanising, due to the dunking process. If you would like to select a paint colour other than Black, please REQUEST A QUOTE
Brand: AFL (Always Fit League)
Made In: South Africa (ZAR)
Length: Customizable (see table/diagram above)
Width (depth off wall): 118.5cm
Height: 2.4m/2.8m/3.8m/ or custom 4.7m (Or combo of heights – custom quote)
Material Type: Spray Painted Matt Black Steel (see “Finish” below for custom colours and outside rigs)
60mm x 60mm (2.31mm) 11-Gauge Steel
32mm OD Round Bar (2.31) 11-Gauge Steel

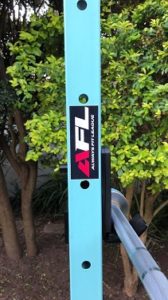

8mm steel platted Gussets (lazer cut with branding) and foot plates
With all 60mm x 60mm, 17mm Hole accessories
Comes standard in Black for INDOOR USE. If you want the unit to be installed OUTSIDE in the elements, we suggest that you galvanise and paint for outdoor use, especially if you are at the coast! Galvanising and painting for the outdoors is NOT INCLUDED IN THE COST. Please REQUEST A QUOTE for this! Please note that Galvanising gives a “rougher” and less “refined” finish, due to the dunking of the product and coating it! Drainage holes also need to be added to all items when galvanising, due to the dunking process. If you would like to select a paint colour other than Black, please REQUEST A QUOTE!
Your product will be packed safely and shipped within 1 week for 2.4m and 2.8m Racks and Units with a black finish. Taller (3.8m/4.7m) and Longer Wall Mount Rigs (i.e. 2-3x or more units/racks) will take 1 to 3 weeks before shipment. Galvinising and/or Colour could take slightly longer on all items in this series. Expected time to delivery will be given on order for these items! Once your product is safely packed, shipment will take 3-4 days, from dispatch to arrival. We will email you tracking details for your shipment once it is dispatched!
