Product Description
Proudly made in South Africa. This is the pinnacle of the Outdoor Home Gym or can be combined together to form a massive “Mountainous” freestanding Rig at any gym/box/sports facility!
Literally all functional training can be completed on this Rig from 2 athletes squatting/benching/using the rack at a time, through to 2-3 athletes simultaneously performing gymnastics movements such as pull-ups/muscle-ups/toes to bar etc. The tall 4.7m uprights allow for a full 15 foot (4.57m) of Rope climbing while the lower 3.8m can also be used for lower rope climbs and setting up rings for muscle-ups.
Our 60mm x 60mm (2.31mm) 11 Gauge steel for Vertical (4.7m and 3.8m) Uprights and Horizontal Cross-member beams create great stability and points of attachments for various accessories. These include items such as our AFL Wall Ball “Bulls Eye” Targets and our Rope and Ring Attachment Clamps, which can be attached at various heights through the entire length! The vertical uprights have Westside type hole spacing through the bench/pull area (2.5cm pitch spacing), and a 5 cm pitch spacing above and below that area.
Important features include: an adjustable 185cm pull-up/muscle-up bar, an adjustable 113cm Pull-up bar; 2 separate squat/bench rack positions, 2 Pairs of J-cups, and sturdy Horizontal Square Cross-member beams for rope climbing, rings and/or other attachments, as well as increasing stability.
PRODUCT SPECIFICATIONS
Brand: AFL (Always Fit League)
Made In: South Africa (ZAR)
Finish: Black (See Notes on Finish Below for OUTDOOR use and other COLOURS)
Product Weight: 89.3 kg
Length: 196.5 cm
Width: 124.5 cm
Height: 4.7m (max)
Steel Notes:
60mm x 60mm (2.31 mm) (11) Gauge Steel
8mm Steel Plates for gussets and Cross-member ends
8mm Laser cut Steel Plates for gussets with branding
Foot Print:
196.5 cm x 124.5 cm
Compatibility:
With all 60mm x 60mm (2.31mm) 11 Gauge Steel Vertical Uprights or Horizontal Beams with 17 mm holes (16 mm Pin)
Parts:
Two (2) x 3.8m uprights
Two (2) x 4.7m uprights
Both uprights have Westside type hole spacing through the bench/pull area (2.5cm pitch), and 5 cm pitch spacing above and below.
One (1) 112.5cm Pull-Up/Muscle-up Bar
One (1) 184.5cm Pull-Up/Muscle-up Bar
One (1) 112.5cm Square Horizontal Beam (with 5 cm pitch holes)
One (1) 184.5cm Square Horizontal Beam (with 5 cm pitch holes)
2 Squat Rack Positions

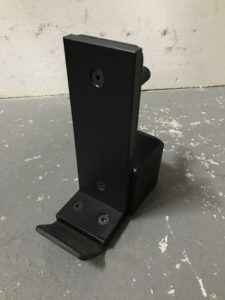

2 Pairs of J-Cups
18x M16 hardware
Note:
Concrete Anchors NOT SUPPLIED
Unit Must Be Bolted to a stable Floor
Finish:
Comes standard in Matt Black for INDOOR USE. If you want the unit to be installed OUTSIDE in the elements, we suggest that you galvanise and paint for outdoor use, especially if you are at the coast! Galvanising and painting for the outdoors is NOT INCLUDED IN THE COST. Please REQUEST A QUOTE for this! Please note that Galvanising gives a “rougher” and less “refined” finish, due to the dunking of the product and coating it! Drainage holes also need to be added to all items when Galvanising, due to the dunking process. If you would like to select a paint colour other than Matt Black, please REQUEST A QUOTE
IMPORTANT FEATURES OF THE MOUNTAIN V1 RIG
1) HEAVY GAUGE SOUTH AFRICAN STEEL & HARDWARE

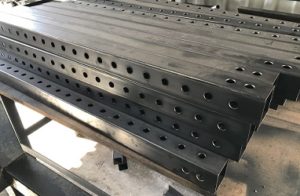

The Mountain V1 standalone Rig uses heavy-duty 60mm x 60mm (2.31mm – 11 gauge) steel uprights and horizontal beams with 17 mm holes throughout. The rig is securely bolted together with M16 hardware (100mm). Our pin holes are accurately drilled with a computerised CNC machine to ensure maximum accuracy and strength.
2) COMPATABILITY WITH ADD ON FEATURES

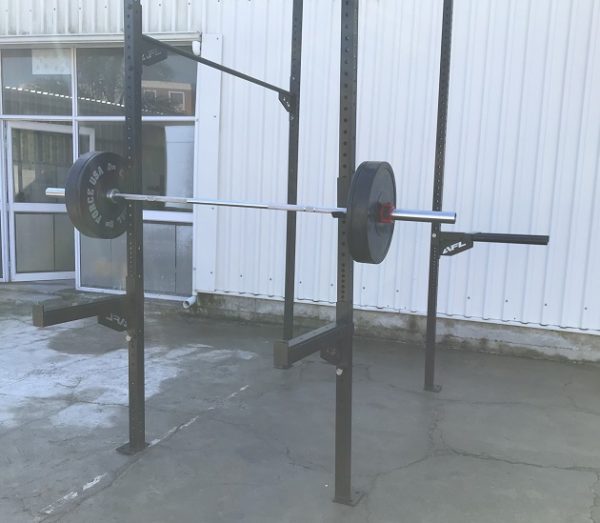

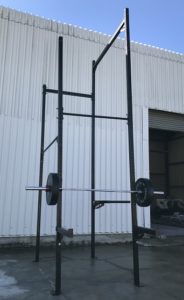

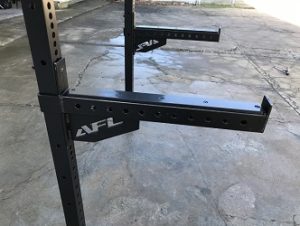

This Mountain V1 Rig is compatible with all our accessories and add on features, such as our Safety Spotter Arms, Dips Bars “Buffalo Bars”, our “Bulls Eye” Wall Ball Targets, and our Rope and Ring attachment Clamps. The Mountain V1 Rig is the ultimate home Rig that allows you to train in small groups from squatting to benching, to a range of gymnastics movements including full 15 ft (4.57m) rope climbs on our 4.7m tall rig. This Rig as a unit can be added together to form a massive “Mountainous” rig in boxes/gyms/sports facilities. Please request a quote if you would like to combine units of this rig together, or if your would like to build your own custom rig!
3) FULL RIG WHICH ALLOWS FOR MULTIPLE ATHLETES TO TRAIN SIMULTANEOUSLY
The Mountain Rig allows for 2 athletes squatting/benching or using the 2 racks simultaneously, while another 2-3 athletes can simultaneously perform gymnastics movements such as pull-ups/muscle-ups/toes to bar/rope climbing! This Rig is therefore ideal for training in small groups! If combined in series this Rig allows for a FULL COMPETITION SET-UP for boxes/gyms/sports facilities!
4) FINISH, QUALITY CONTROL AND WARRANTY
All aspects of the manufacturing process (cuts, welding, laser cutting, drilling, painting) are checked individually at each step of the process to ensure that product quality, integrity and finish are of a high standard. Each part of the final product is again inspected for quality control purposes once it is completed. The same process is repeated before the product is packaged for shipping purposes. We have a 1 year warranty on all working parts for normal wear and tear.
5) EASY SET-UP AND INSTALLATION

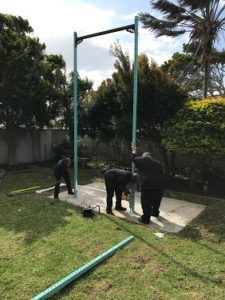

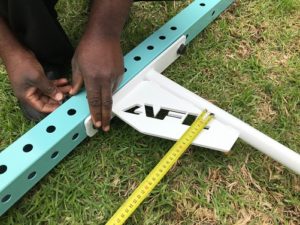

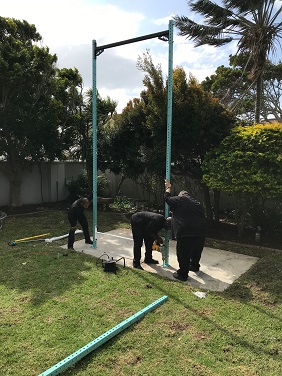

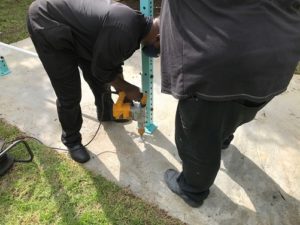

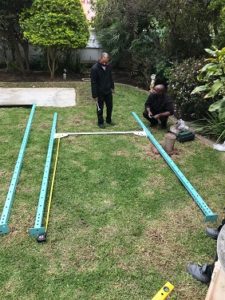

Even though this unit is big, it is simple to set-up and install! The unit easily bolts together with eighteen (18) M16 bolts 100 mm long, once secured to a solid surface by 8 points of attachment (2 per upright). The unit must be safely secured to the floor with concrete anchors or other specific anchoring that can be used for the specific material that you are anchoring the Mountain Rig onto! A step by step video showing installation and set-up will soon be placed on our Youtube channel.
6) SHIPPING
Upon order, we will provide you with the time-line to shipment. Generally speaking we will ship within 1-2 weeks but this may be longer if you want the product Galvanised or painted in colour. Your product will be packed safely and shipment will take 3-4 days from dispatch to arrival. We will email you tracking details for your shipment once it is dispatched!
